Description

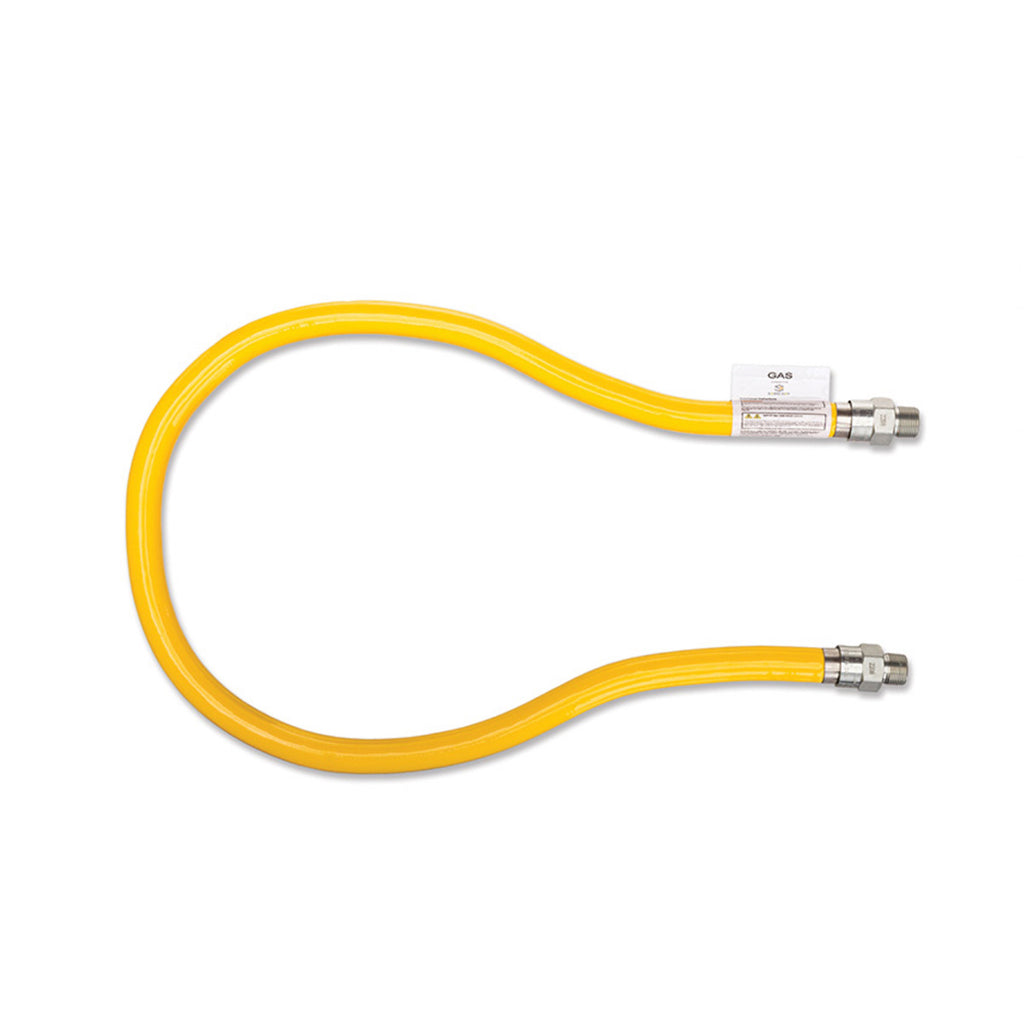

Moveable grade gas connector is composed of a 304 stainless steel corrugated tube covered with a tight weave stainless steel braid. The outside hose coating is an antimicrobial PVC coating that inhibits the growth of bacteria, mold, and mildew on the connector. Rotational technology fittings on both ends of the connector rotate 360 degrees, greatly reducing stress at both connector ends.
Features
- Coating: Blue antimicrobial PVC, melts at 350°F (177°C); the coating will not hold a flame
- Stress Guard®: 360° rotational end fitting at both ends
- End Fittings: Carbon steel; zinc trivalent chromate
Specifications
- Tubing: Annealed, 304 stainless steel
- Braiding: Multi-strand, stainless steel wire
-
-
Length:42.5 in / 107.95 cm
-
Width:11 in / 27.94 cm
-
Height:8 in / 20.32 cm
-
Weight:5 lbs / 2268 g
-
Approvals & Certifications
- NSF/ANSI 169 – Special-purpose food equipment and devices
- ANSI Z21.69/CSA 6.16 – Connectors for moveable gas appliances
- Meets requirements of ANSI Z223.1/NFPA 54 National Fuel Gas Code
- Not for use in temperatures less than 32°F (0°C). For indoor use only.
