Description

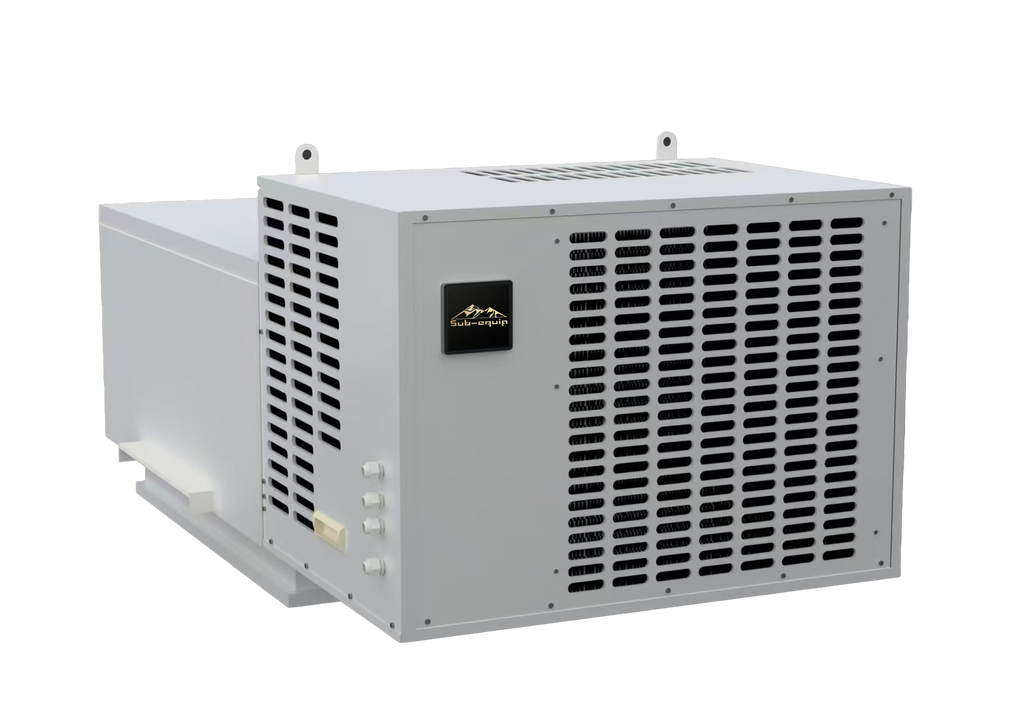

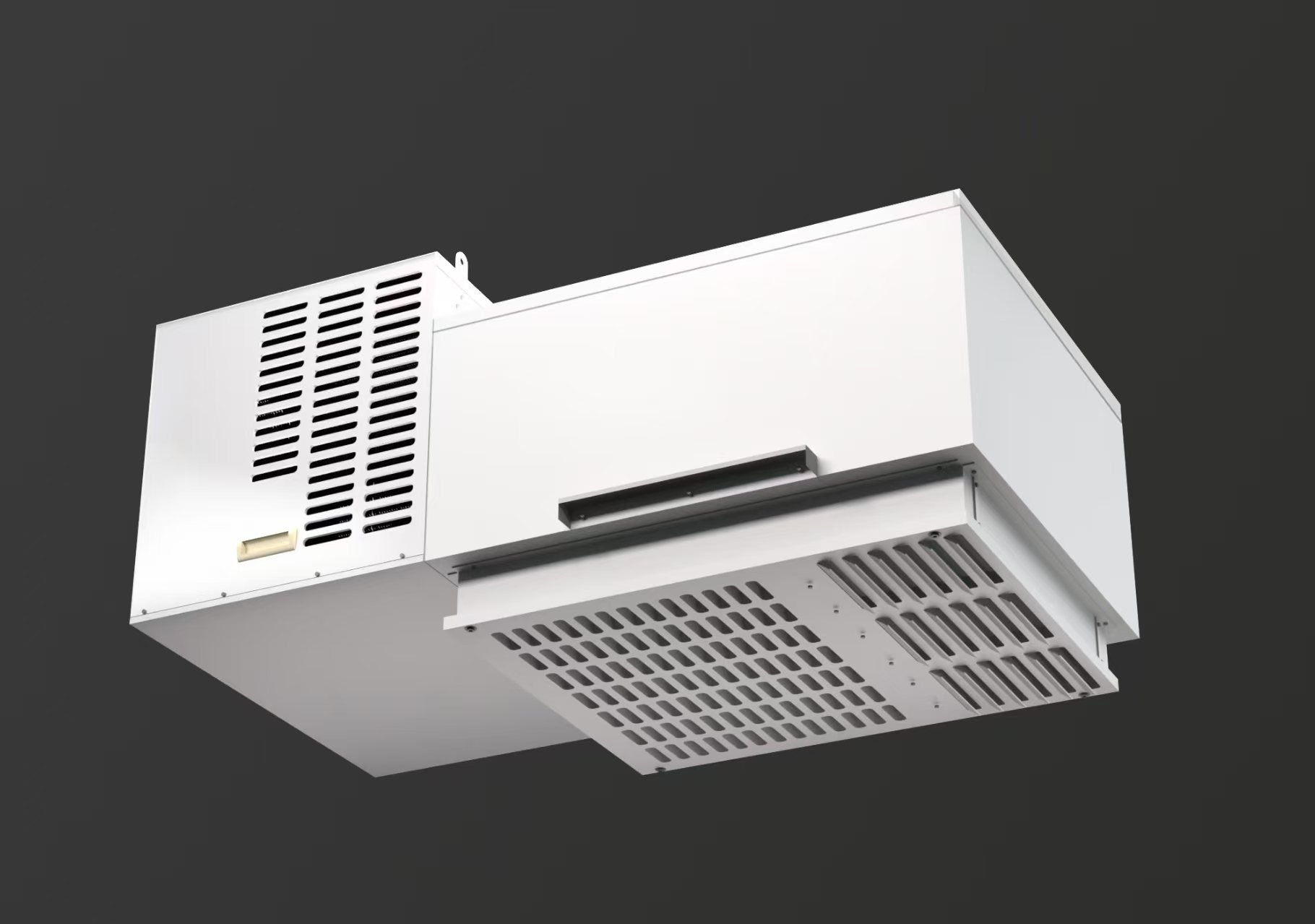

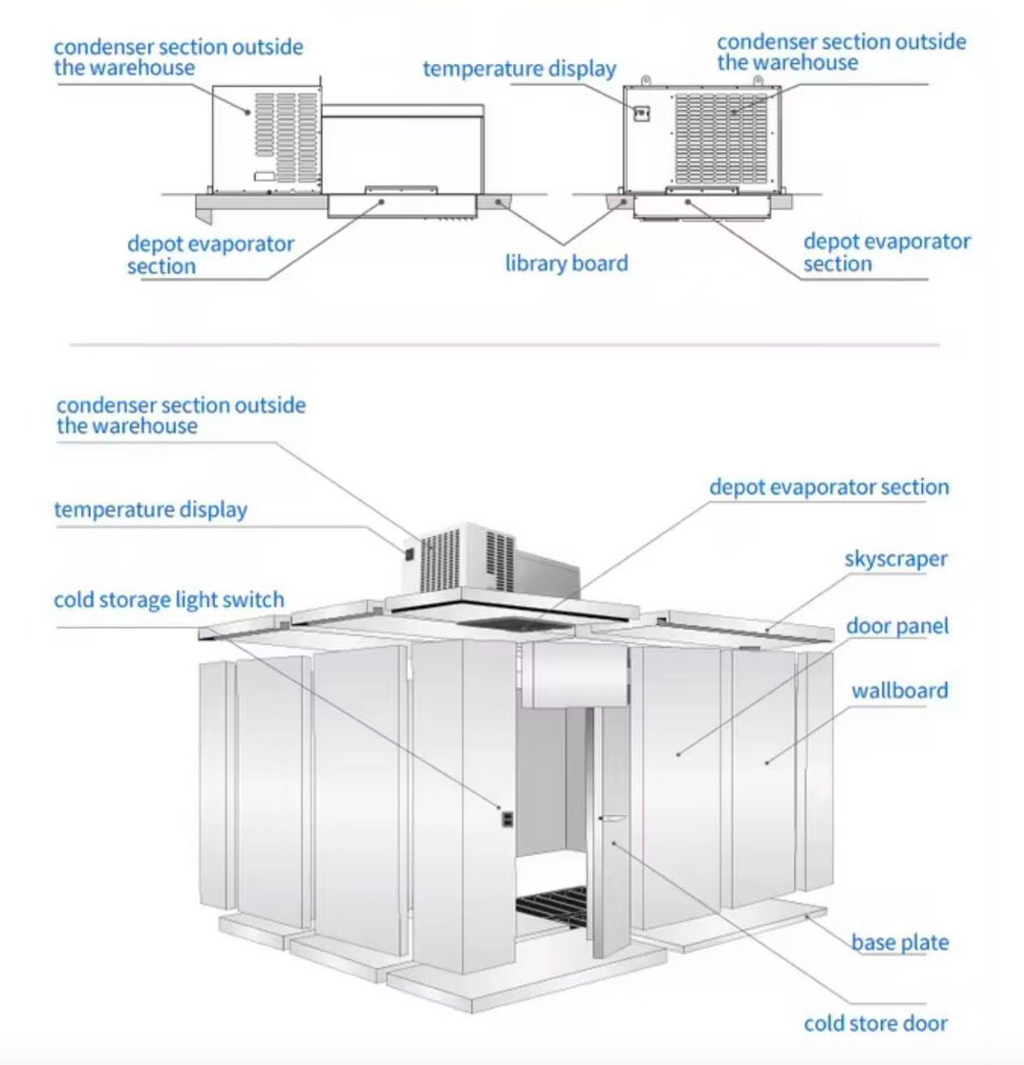

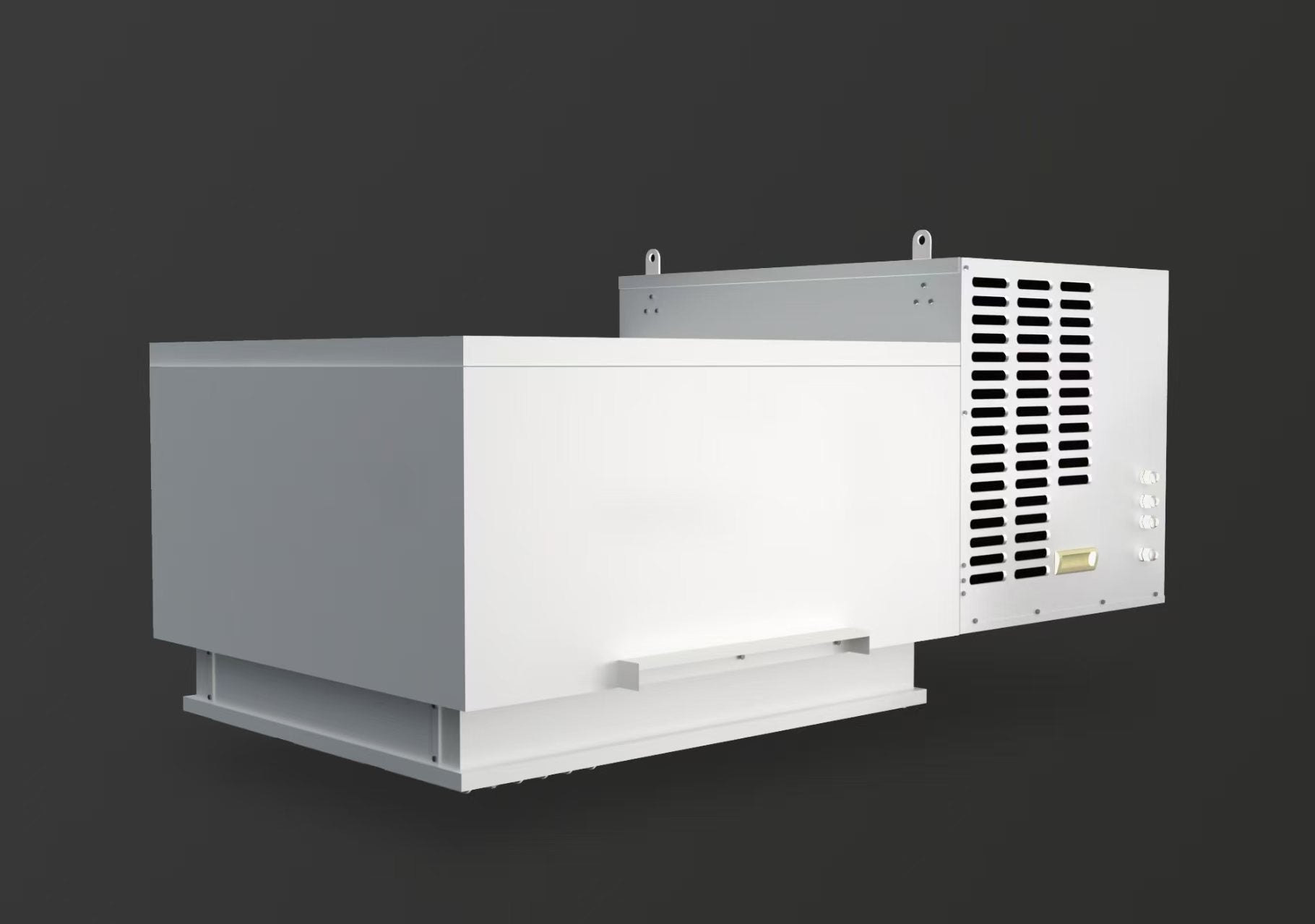

- Integrated condensing unit and evaporator design in a single compact system, significantly reducing installation time and on-site labor requirements.
- Designed for cold rooms ranging from 19–28 sqm, ideal for most small to medium walk-in freezer applications.
- Maintains stable operating temperatures between -18°C to -22°C (0°F to -7°F), suitable for frozen food storage and commercial refrigeration use.
- Delivers strong and reliable cooling capacity for continuous commercial operation.
- High-efficiency ventilation grille improves heat dissipation and enhances overall system reliability.
- Fully rust-resistant body constructed with galvanized steel panels and durable powder-coated finish.
- Optional microchannel condenser available to meet different regional and market requirements.
- Self-evaporating defrost water system eliminates the need for external drainage considerations.

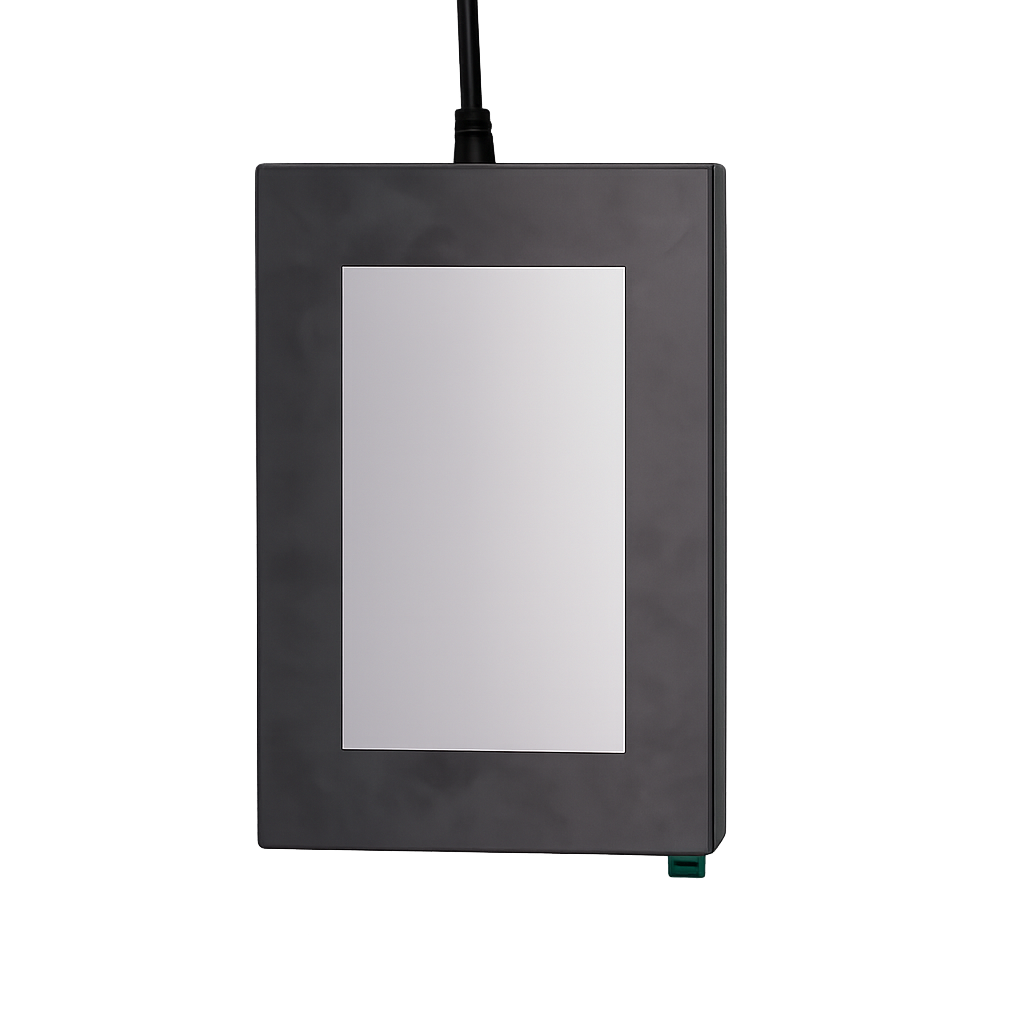

- Simple and user-friendly control system with optional remote control functionality.
| Compacity Meter | 19 sqm-28 sqm |
| Voltage | 220V / 60Hz / 1Ph |
| Power | 1920W |
| Compressor Hose Power | 3 HP |
| Refrigerant | R448a |
| Size | 1315*840*697 mm (51.77″ × 33.07″ × 27.44″) |
| Weight | 128 kg (282.2 lbs) |
Temperature:
Interior temperature range: -18°C to -22°C (0°F to -7°F)
